Features
Working Procedure:

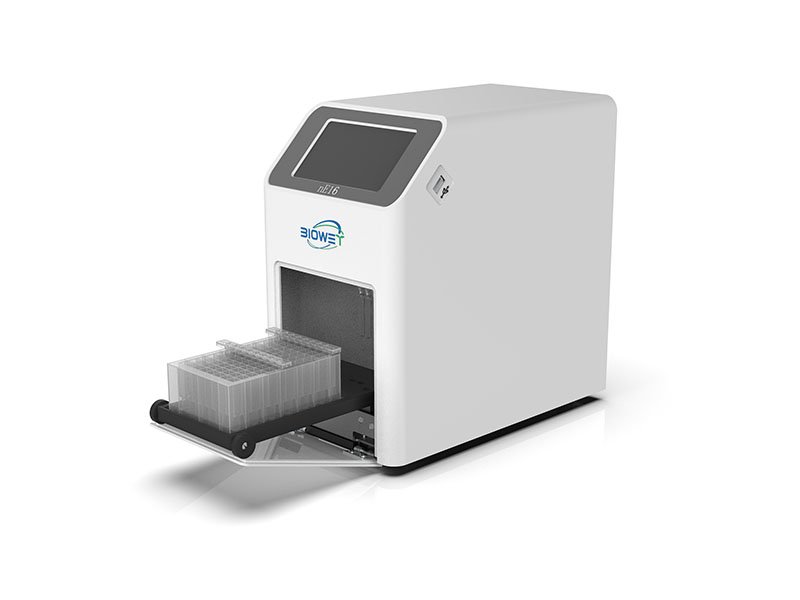

● Flexible: Compact design with small foot print, the device can be placed in a biological safety cabinet or a mobile laboratory for quickly extract 1-16 samples at one time.
● Automation: Auto control of the plate carrier in and out action, which can guarantee an easy integration into robotic platforms
● Accurate: Fitted heating module to improve heating speed and temperature accuracy, the device can realize high extraction efficiency.
● Efficient: high-quality materials and processes are used, the recovery efficiency of magnetic beads is high
Fig1: Extract 16replicate samples by nE16 Fig2：Multiple samples with different concentration
and RT-PCR on nQ16,CV of CT value=0.6% extracted on nE16,R²>0.999
● Innovative: Uniquely designed magnetic adsorption device, compatible with minimum 50ul eluent.
● Anti-contamination: Built-in HEPA filter and UV light to prevent pollution.
● User-friendly: Standalone operation with a 5inches touch screen, multi-machine joint operation can be carried out through the PC software.
Specification
| Model Number | nE16 |
| Sample Throughput | 16 |
| Deviation between wells | CV＜3% |
| Beads recovery efficiency | ＞95% |
| Processing volume | 100-1000ul |
| Elution volume | 50-100ul |
| Mixing | Adjustable mixing speed |
| Plate number | 1 |
| Heating temperature | Ambient temperature~100℃ |
| Pollution Control | Built-in HEPA filter and UV light |
| Operation | 5 inch color touch screen |
| Control Mode | Stand-alone by touch screen or software operation through PC |
| Connect port | RS-485 |
| Data storage | 1GB |
| Data transfer | USB Disc |
| Compatibility with robotic | Yes |
| Safety | Self-checking and over-temperature protection |
| Power | 100-240V 50/60Hz, 100W |
| Operation environment | 15-40℃,≤80% |
| Dimension (W*D*H） | 295.5*173*300mm,6Kg |
