Features
- Test sample volume as low as 0.5µL: By forming a liquid column, the sample required for one test is as low as 0.5µL, and the trace amount is detected, saving precious samples.
- Wide detection concentration range: Common samples can be tested without dilution. The concentration range of the measurable sample is 200 times of the conventional ultraviolet -visible spectrophotometer.
- Fast detection, 5 seconds can complete detection: The machine does not need to be preheated, it can be detected after power on, single detection time is about 5 seconds, the results are displayed and the test is fast.
- DNA sample test-stability test: Use the ribonucleic acid yeast solution, at room temperature, configure 8 different concentrations solutions, covering high and low concentrations, each solution measured 5 times, draw a graph of the measured solution concentration. The graph shows.
- USB can be connected to printer, output data is more intuitive and convenient.
- The software has powerful functions to meet various experimental needs.
- Wide range of applications: Physics, chemistry, biology, medicine, materials science, environmental science and other scientific research fields.
Specifications

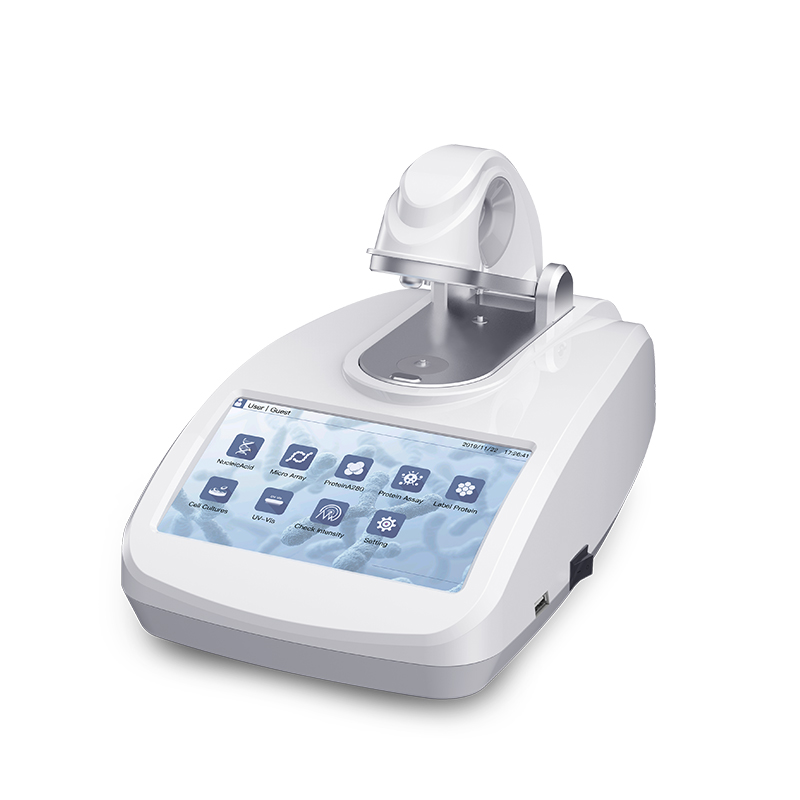

| Model | ND-100 |
| Test sample capacity | 0.5-2µL |
| Light source | Xenon lamp |
| Detector | 2048 linear CCD array |
| Optical path | ≤0.7mm |
| Wavelength range | 200~850nm |
| Wavelength accuracy | 1nm |
| Wavelength resolution | ≤2nm |
| Light absorption range | 0.04~300Abs (10nm) |
| Light absorption accuracy | 0.002 Abs (1mm) |
| Absorbance accuracy | 1% (0.76 Abs at 256nm) |
| Detection concentration range | 2~15000 ng/ µL (dsDNA) |
| Sample base material | 304 stainless steel and quartz optical fiber |
| Measure time | About 5s |
| Power | 20W |
| Power Adapter | 12V, 5A |
| Dimensions | W.197xD.327xH.181mm |
| Net weight | 3.1kgs |
