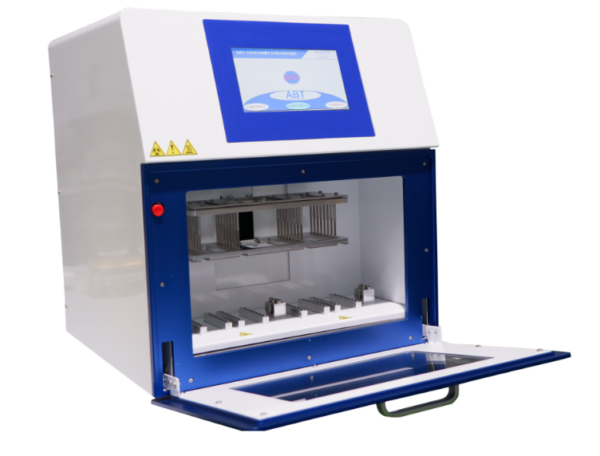

1. Introduction
The ABT Nucleic Acid Extractor (EZ32) utilizes nucleic acid magnetic properties to create a rapid and batch DNA/RNA extraction process. Magnetic extraction technology helps save time in the DNA/RNA extraction and purification step for large amounts of samples. The capacity of the ABT extraction machine can be up to 32 samples per run for 30 minutes. In addition to standard consumables used to extract maximum sample volumes, ABT also provides consumables used to operate the extraction machine with small sample volumes, helping to save costs on chemicals and accompanying supplies.
2. Application of automated nucleic acid extraction system
This product is used for the extraction and purification of nucleic acids in molecular biology laboratories and clinical laboratories.
It has features as follows:
- The uniformly designed magnetic carrier bars help ensure that there are no residual magnetic particles. Suitable for all small sized magnetic beads.
- Limit foreign contamination with UV disinfection light system.
- Multiple programs can be edited, changed and cached on the machine ensuring consistent, highly repeatable runs.
- The dashboard-friendly interface allows user-friendly simultaneous display of running programs and parameters.
- Temperature control with automatic heating system enhances the efficiency of lysis and elution.
It is safer and more reliable for use. It can be used to extract DNA, RNA from whole blood, cells, and tissues and so on, so as to save time and labor.
3. Normal Working Conditions
Operating temperature: 10oC ~ 40oC
Operating humidity: 10 – 90%
Power supply: AC 220V±10%
Attention :Before power on, please confirm whether the working conditions meet the above requirements. Pay special attention to the power line is reliably grounded.
4. Transportation and Storage Conditions
Environment temperature: 15oC ~ 35oC
Environmental humidity: ≤80%.
5. Specifications
| Code | EZ32 |
| Sample size | 32 samples/run |
| Capacity | ~ 300W |
| Noise level dBA | ≤ 65 |
| Sample homogeneity | Cv < 3% |
| Operating temperature | 5 ÷ 125℃ |
| Magnetic rod (fixed) | 4 x 8 pcs |
| Sample volume range | 20 ~ 1000μL |
| UV intensity | ≥ 40 µw/cm² |
| Magnetic bead collection efficiency | ≥ 98% |
| Most suitable size of magnetic beads | 0.2 ~ 1.0μm |
| Overall dimensions (mm) | 422*400*455 (L*W*H) |
| Net weight | 35Kg |
6. Structure diagram of the extraction machine
1. System case
2. Screen
3. Handle
4. Compartment door
5. Where 32 deep well plate is placed
6. Magnetic bars
7. Operating room
8. Air grille
9. The back
10. Power port
7. Recommended extraction kits for EZ32 system
For the EZ32 32-model separator, consumables include two solutions depending on sample run capacity:
7.1. Standard capacity: Used to run up to 32 samples/run simultaneously
– Deep-well plate: Including 96 wells used for ABT extraction machine. The product is manufactured with high purity materials, sterilized and does not contain fine dust that contaminates the sample.
- Number of wells on the plate: 96 wells (8×12 wells)
- Well bottom shape: V shape
– Tipcomb is manufactured in plastic polypropylene (PP), used to cover magnetic rods for ABT separators. The product is suitable for handling magnetic beads due to their low binding affinity for nucleic acid molecules.
- Number of tips on tipcomb: 8 tips correspond to 8 magnetic bars
- Cylindrical shape with U-shaped sleeve bottom.
7.2. Optimal capacity: Used for sample runs with more than 1 sample/run
– Tipcomb is manufactured in plastic polypropylene (PP), used to cover magnetic bars for ABT separators
– ABT® EZ32 Strips Tube is manufactured using high purity materials using a modern manufacturing process that ensures uniformity and accuracy high body. The product is sterilized and does not contain fine dust that contaminates the sample. The product can be used to replace 1.5mL tubes for sample storage and used in retail magnetic extraction.
– Rack from ABT® EZ32 Rack (ART-001) is made of sturdy stainless steel. The product is used as a base to support tube strips in magnetic extraction in ABT separation machines.
*The above consumables can be used for the 16-model EZ16 separator, the 32-model EZ32 separator and some other Bioer models.
8. Extraction kit products used on ABT EZ16 machine
TopPURE® Maga Serum DNA/RNA Co-Extraction Kit (HI-007)
TopPURE ® Maga Genomic DNA/RNA Extraction Kit (HI-612)
TopPURE® Maga viral DNARNA Extraction Kit (HI-812)
